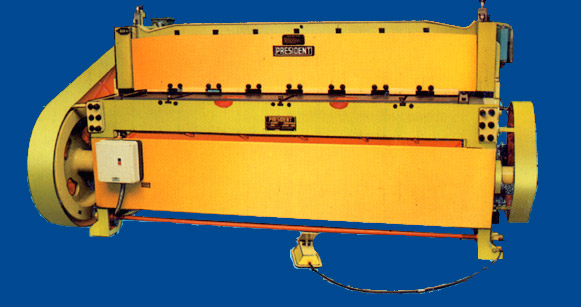

President Under Crank Shearing Machine



» Product Details

FRAME:
To ensure rigidity and accurate alignment to the complete assembly and to, unsure against vibrations and detractions, cast iron side walls having large dimensions and cross section, properly ribbed at critical places are provided. Except for side walls and all other parts are steel fabricated.

TABLE:
Steel fabricated, box type table is heavily ribbed for strength and is stress relived, Its machined seat provides true and firm support to the bottom blade. It is adjustable for setting the blade clearance. The top surface of the table is provided with T slots for adjusting the front guage.

UPPER BEAM:
Upper beam is fabricated with thick M. S. plate. It is heavily ribbed from behind and is stress relieved. The top blade is fitted at its accurately machined seat, its sliding surface are machined and hand scrapped for smooth travel and sustained accurately.


GUIDE WAYS:
Accurately machined guide ways keep the upper beam in its bearing throughout the stroke. A taper wedge is provided to compensate for the wear and to facilitate quick setting of the blade clearance.

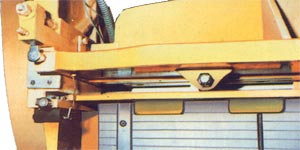

HOLD DOWN DEVICE:
The spring loaded mechanical hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cut, Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.

DRIVE, CLUTCH AND BRAKE: DRIVE:
Motor, mounted on an adjustable platform, drives the large cast iron fly wheel through vee belts. The power is further transmitted to the fly wheel shaft through steel pinion and main gear. Gun metal bushes are provided all the rotating parts.

CLUTCH:
Rolling key clutch is linked with the main gear and engages every time when the foot switch is pressed.


BRAKE:
spring tensioned brake fitted at the end of the crank shaft to damp inertia.

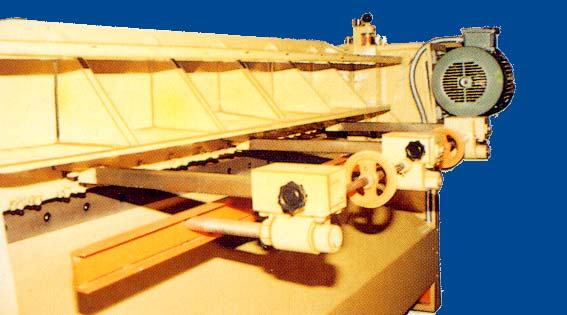

FRONT AND REAR GAUGES: FRONT GAUGE:
T Slotted front gauge fabricated from mild steel is detachable.

REAR GAUGE:
Rack and Pinion type rear gauge provides accuracy and is easily adjustable to cut parallel and taper strips efficiently.

BLADE:
President shears are provided with high quality single segment (Hc, hcr) blade with four edged.


LUBRICATION:
All bearing parts and guide surfaces are lubricated through connected oil cups and hand operated lubrication pump.

STANDARD EQUIPMENTS:
Rear gauge, Side squaring and Front gauge, Foot pedal switch,
Motor pully, Gear & Fly wheel guards, Standard instruction manual and Spanner.

STANDARD ACCESSORIES:
Electric Motor, Starter, Vee belts, Manual lubrication pump, Front gauge, Rear gauge with scale and stroke counter, Electric and lubricating pipe fittings and wiring.

POWER SUPPLY:
400 / 440 Volts, 3 Phase, 50 Cycles.

NOTE: Electrical items & blade are not under warranty.


« Back to Product «

# Go Top #

Specification

Model Cutting
capacity in
Mild steel
Length X
Thickness
Stroke
Per
Minute
Table
Height
Table
Width
Front
Gauge
Rear
Gauge
Motor
HP / KW
Blade
Length x Width x
Thickness

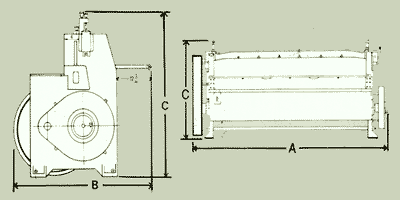

Overall Dimension in M.M.

Length
A
Length
B
Length
C
PUS-2/1 1270 x 2 45 795 350 750 500 2 / 1.5 1270 x 50 x 10 2030 1325 1350
PUS-2/2 1525 x 2 45 795 350 750 500 2 / 1.5 1525 x 50 x 10 2300 1325 1350
PUS-2/3 2030 x 2 45 795 350 750 500 3 / 2.2 2030 x 50 x 12 2800 1325 1350
PUS-2/4 2540 x 2 45 810 425 975 500 5 / 3.7 2540 x 62 x 13 3300 1450 1450
PUS-2/5 3125 x 2 45 810 425 975 500 7.5 / 5.6 3125 x 62 x 13 3900 1450 1450
PUS-4/1 1270 x 4 50 810 425 975 500 5 / 3.7 1270 x 62 x 13 2100 1450 1400
PUS-4/2 1525 x 4 50 810 425 975 500 5 / 3.7 1525 x 62 x 13 2400 1450 1400
PUS-4/3 2030 x 4 50 810 425 975 500 7.5 / 5.6 2030 x 62 x 13 2900 1450 1400
PUS-4/4 2540 x 4 50 900 450 975 600 10 / 7.7 2540 x 75 x 18 3400 1700 1550
PUS-4/5 3125 x 4 50 900 450 975 600 12.5 / 9.7 3125 x 75 x 18 4000 1700 1550
PUS-6/1 1270 x 6 50 810 425 975 500 7.5 / 5.6 1270 x 62 x 16 2150 1500 1400
PUS-6/2 1525 x 6 50 810 425 975 500 10 / 7.7 1525 x 62 x 16 2450 1500 1400
PUS-6/3 2030 x 6 50 900 450 975 600 12.5 x 9.7 2030 x 75 x 18 3950 1700 1600
PUS-6/4 2540 x 6 50 900 450 975 600 12.5 x 9.7 2540 x 75 x 18 3450 1700 1600
PUS-6/5 3125 x 6 50 900 450 975 600 15 x 11.2 3125 x 75 x 18 4100 1700 1600


All Dimensions are in mm.
For better performance of the machine, we reserve rights to alter the designs and specification without prior notice.
